OPTIONAL CONFIGURATION
Direct spindle connection
Spindle oil cold
CNC fourth axis
CNC fifth axis
STANDARD CONFIGURATION
FANUC 0i-MF Siemens 828D,Mitsubishi
M80A,Mitsubishi M80B,Taiwan SYNTEC and other well-known
Domestic and foreign famous brand numerical control system
brands CNC system
Taiwan BT40 spindle unit
Taiwan 24 tool magazines
Taiwan ball screw
Japan famous brand bearing
Indirect automatic lubrication
Separate electronic hand wheel
Cabinet air conditioning

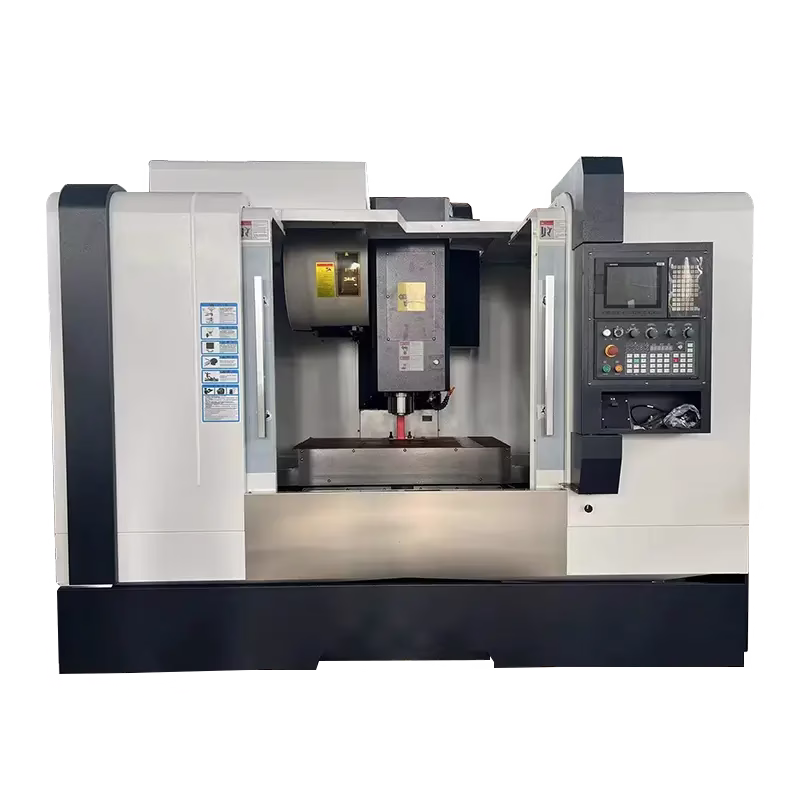

Extra-large column stability,”herringbone” column structure,high-speed displacement without vibration, no deformation, rapidtraverse speedup to 48m/min, Z-axis is driven by a braked servo motor,with no counter weight design, to enhance the Z-axis drive performance,the implementation of 3D machining, to achieve the best surface accuracyAll three axes adopt roller linear guides with high rigidity. low noise andlow friction characteristics to obtain the best rounding accuracy.The ballscrew adopts pre-tensioned structure at both ends, and the servo motorand ball screw are directly connected to each other. Resulting in high speedand high positioning accuracy, and the Y-axis of some models adopts afour-guide design .
| specifications | vmc1370 | vmc1580 | |
| tadle size | mm | 1500×700 | 1700×800 |
| the maximumloadcapacity | kg | 900 | 1500 |
| x/y/zaxistravel | mm | 1300x700x700 | 1500x800x700 |
| distance betweem spindle center and column | mm | 752 | 871 |
| distance betweem spindle rnd face and worktable surface | mm | 150-850 | 150-900 |
| x/y/zmax.feedsoeed | mm/min | 10000 | 10000 |
| x/y/zmax.rapid traverse | m/min | 28/28/24 | 20/20/16 |
| spindle speed | type | 800 | 6000 |
| spindle taper | kw | bt40 | bt50 |
| spindle motor power | kw | 11/15 | 15/18 |
| x/y/z axis servo motor power | 3/3/4.5 | 4.5/4.5/4.5 | |
| x/y/z motor connection | direct-connection | direct-connection | |
| x/y/z guide way type | mm | two rail line and one hard rail | two rail line and one hard rail |
| t slot | mm | 5-18×145 | 5-22×145 |
| repeat positioning accuracy | ±0.005 | ±0.005 | |
| tool magazine | disc type | disc type | |
| tool capacity | kg | 24t | 24t |
| maximum tool weight | mm | 8 | 15 |
| mAx.tool length | kva | 300 | 300 |
| electric capacity | mm | 22 | 30 |
| machine dimension(l×w×h) | kg | 3000x3000x2700 | 4260x3545x3200 |
| net.weight(adout) | 11000 | 12000 |
