PRODUCT FEATURES
This series of models is a five-axis linkage vertical machining center, which can realize X,Y,Z,B,C, axis five-axis linkage at the same time especially suitable for impeller, blade, complex mold and space CAM with complex surface parts processing, suitable for mold, aviation, power generation and shipbuilding and other industries .
All the spindle box gears are supersonic quenched and precision-toothed, with high precision and low noise.
The electric tool holder has four-station vertical and six-station horizontal, and adopts precision gear disc positioning, with high repeatability positioning accuracy.
PRODUCT FEATURES
Equipped with direct-connected/built-in spindle, low temperature rise and deformation, suitable for precision cutting.
Mechanical turntable and direct drive turntable can be configured to effectively ensure the precision of machining surface.
A full range of five-axis gratings can effectively improve machine accuracy and accuracy retention.

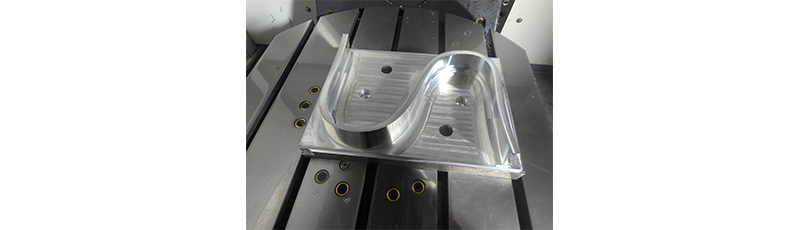

The five-axis machining center has the characteristics of high efficiencyand high precision. The workpiece can complete complex processingin one clamping.lt can adapt to the processing of modern molds suchas automotive parts and aircraft structural parts. There is a bigdifference between the five-axis machining center and the pentahedronmachining center. Many people don’t know this and mistakenly regardthe pentahedron machining center as a five-axis machining center.The five-axis machining center has five axes: x, y, z, a, and c. The xyz andac axes form five-axis linkage machining. lt is good at spatial curvedsurface machining, special-shaped machining, hollowing machiningpunching, oblique holes, bevel cutting, etc. The “pentahedron machiningcenter” is similar to a three-axis machining center, except that it can do fivefaces at the same time, but it cannot do special-shaped machining, punchoblique holes, cut bevels, etc.
| CMC320/650U | ||
| SPECIFICATIONS | CMC320 | CMC650 |
| Table size | Ф400 | Ф3650 |
| Left and right stroke X | 800 | 820 |
| Before and after travel Y | 360 | 520 |
| Up and down stroke Z | 400 | 500 |
| Distance from Spindle to column | 183.5 | 187 |
| Spindle nose to table surface | 150~550 | 150~550 |
| Table t-groove (number – size x spacing) | 4-12×90 (divergent type) | 4-12×90 (divergent type) |
| Spindle taper hole (model/mounting size) | BT40/Ф120 | BT40/Ф150 |
| Spindle speed | 10000 (standard) 12000 / 15000 (optional) | 12000 |
| X.Y.Z ball screw specifications | 4012/4012/3212 | 4012/4012/4012 |
| X axis rail specification | RGW35HC | RGW45HC |
| Y axis rail specification | RGW35HC | RGW45HC |
| Z axis rail specification | RGW35HC | RGW45HC |
| Three axes moving fast | 36、36、36 | 24、24、24 |
| X.Y.Z motor connection mode | direct connection | direct connection |
| Note motor parameters are recommended | 7.5 | 11 |
| X.y.z-axis motor parameters are recommended | 22、22、22 | 22、22、22 |
| Bed plate height | 40 | 50 |
| Swivel of table | 110”/360 | 110°/360° |
